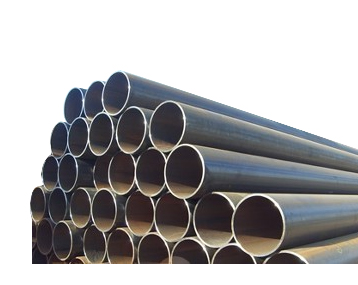

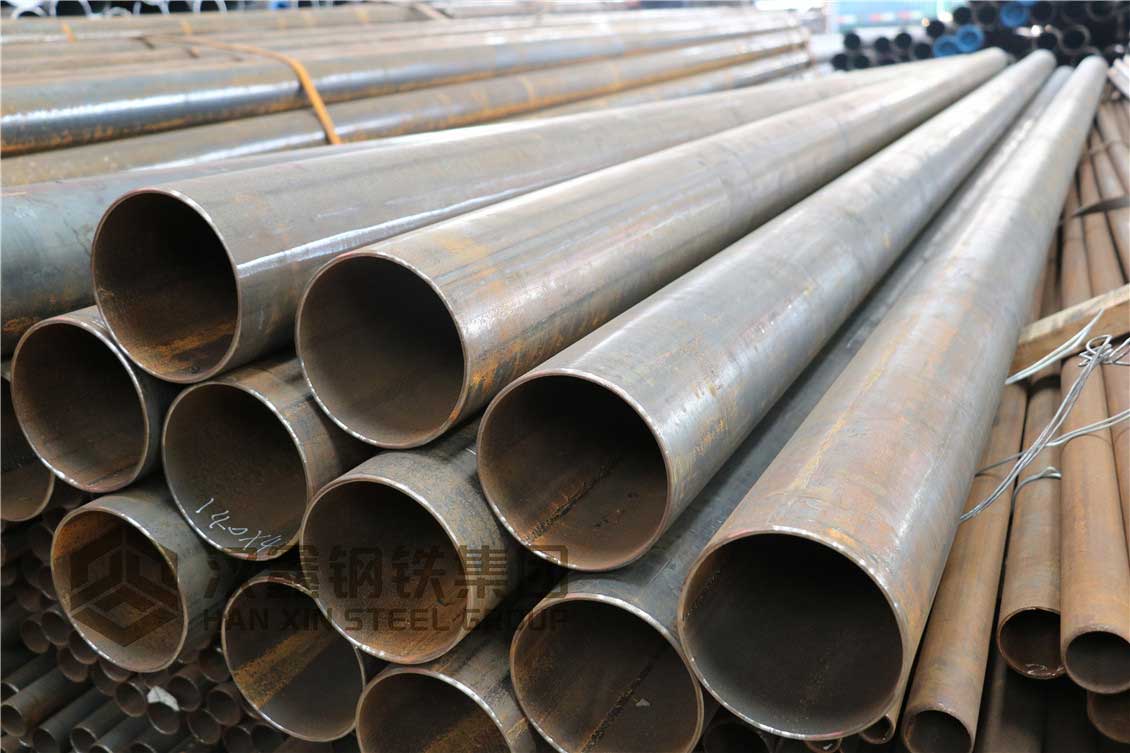

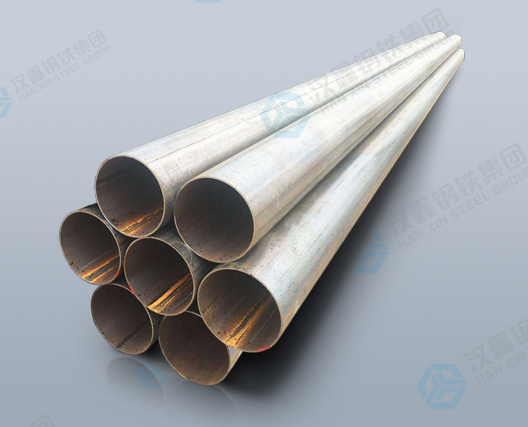

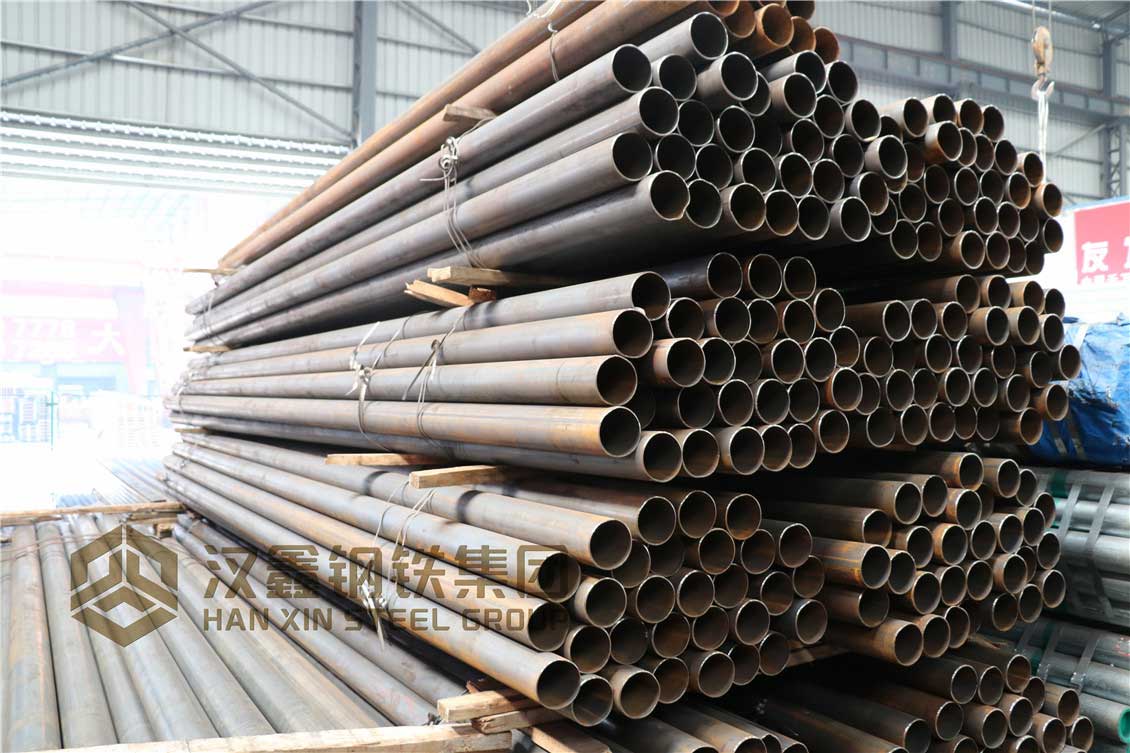

焊接鋼管
焊接鋼管名為直縫焊接鋼管,一般焊管用來輸送低壓流體,是用Q195、Q215A、Q235A、Q235B普碳鋼板或鋼帶經過彎曲成型,然后經焊接制成。鋼管要求進行水壓、彎曲、壓扁等實驗。通常交貨尺寸4-10米。
常規規格:DN15-200
合作品牌
產品詳細
合作品牌
PS:以下規格為國標,如有其它規格需求請聯系在線客服或4000-622-337咨詢
公稱通徑 | 外徑 | 厚度 | 支重 | 公稱通徑 | 外徑 | 厚度 | 支重 |
DN15 | 21.3 | 2 | 5.71 | DN80 | 89 | 3 | 38.17 |
21.3 | 2.2 | 6.22 | 89 | 3.25 | 41.23 | ||
21.3 | 2.5 | 6.95 | 89 | 3.5 | 44.28 | ||
21.3 | 2.75 | 7.55 | 89 | 3.75 | 47.3 | ||
DN20 | 26.9 | 2 | 7.37 | 89 | 4 | 50.31 | |
26.9 | 2.2 | 8.04 | DN100 | 114 | 3 | 49.27 | |
26.9 | 2.5 | 9.03 | 114 | 3.25 | 53.26 | ||
26.9 | 2.75 | 9.83 | 114 | 3.5 | 57.22 | ||
DN25 | 33.7 | 2.2 | 10.25 | 114 | 3.75 | 61.17 | |
33.7 | 2.5 | 11.54 | 114 | 4 | 65.1 | ||
33.7 | 2.75 | 12.59 | DN125 | 140 | 3.25 | 65.76 | |
33.7 | 3 | 13.63 | 140 | 3.5 | 70.69 | ||
33.7 | 3.25 | 14.64 | 140 | 3.75 | 75.6 | ||
DN32 | 42.4 | 2.5 | 14.76 | 140 | 4 | 80.49 | |
42.4 | 2.75 | 16.13 | 140 | 4.25 | 85.36 | ||
42.4 | 3 | 17.49 | 140 | 4.5 | 90.22 | ||
42.4 | 3.25 | 18.83 | DN150 | 165 | 3.5 | 83.63 | |
DN40 | 48.3 | 2.5 | 16.94 | 165 | 3.75 | 89.47 | |
48.3 | 2.75 | 18.53 | 165 | 4 | 95.29 | ||
48.3 | 3 | 20.11 | 165 | 4.25 | 101.08 | ||
48.3 | 3.25 | 21.66 | 165 | 4.5 | 106.86 | ||
48.3 | 3.5 | 23.2 | 219 | 4 | 127.25 | ||
DN50 | 60.3 | 2.5 | 21.38 | DN200 | 219 | 4.25 | 135.04 |
60.3 | 2.75 | 23.42 | 219 | 4.5 | 142.82 | ||
60.3 | 3 | 25.43 | 219 | 4.75 | 150.58 | ||
60.3 | 3.25 | 27.43 | 219 | 5 | 158.32 | ||
60.3 | 3.5 | 29.41 | 219 | 5.25 | 166.04 | ||
DN65 | 76.1 | 3 | 32.45 | 219 | 5.5 | 173.74 | |
76.1 | 3.25 | 35.03 | 219 | 6 | 189.09 | ||
76.1 | 3.5 | 37.6 | |||||
76.1 | 3.75 | 40.14 |
